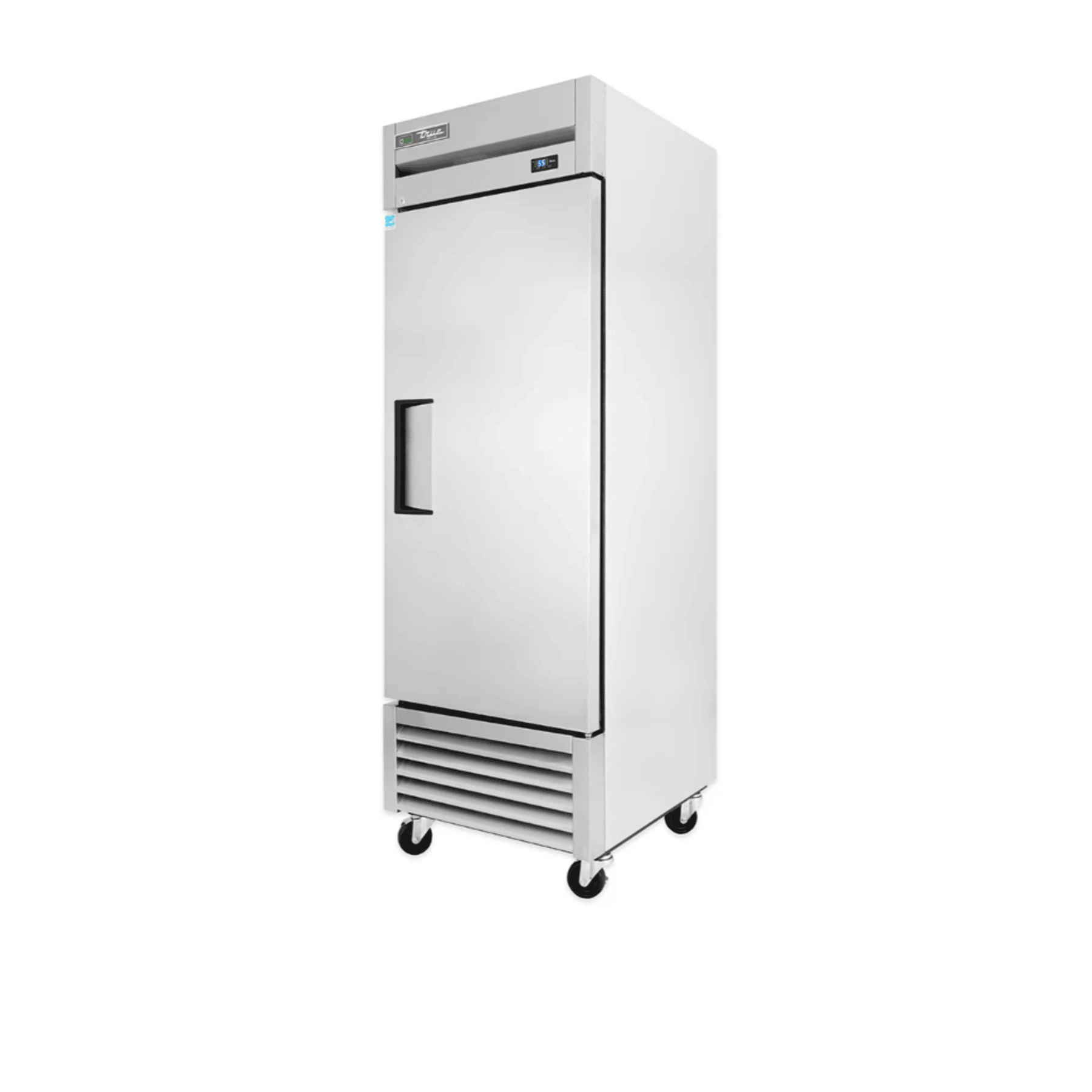

True T-23F-HC 27" Reach-In Freezer – Commercial, 1-Door

True T-23F-HC 27" Reach-In Commercial Freezer – Right-Hinged Solid Door, 115V

The True T-23F-HC is a premium, high-capacity commercial freezer designed for reliable frozen storage in restaurants, grocery stores, bakeries, and institutional kitchens. Featuring a right-hinged solid stainless steel door, bottom-mounted compressor, and eco-friendly refrigerant, this 27" one-section reach-in freezer is built for performance, longevity, and food safety.

Commercial-Grade Refrigeration System

• Eco-Friendly Refrigerant: Uses R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and ultra-low 0.02 global warming potential (GWP)—better for the planet and your utility bill.

• High-Capacity Cooling: Oversized evaporator coil, large condenser, and powerful compressor maintain steady -10°F (-23.3°C), perfect for long-term storage of frozen foods and ice cream.

• ECM Fan Motors: Electronically commutated evaporator and condenser fan motors provide energy efficiency, reduced heat output, and superior airflow.

• Bottom-Mounted Compressor: Located in the coolest, most grease-free zone of the kitchen. Easy access for cleaning and allows for extra top-mounted storage.

Durable Cabinet Construction

• Exterior: Stainless steel front with anodized aluminum ends and a corrosion-resistant GalFan-coated steel back.

• Interior: Clear-coated aluminum liner with a stainless steel floor and coved corners for effortless cleaning and sanitation.

• High-Density Insulation: Entire cabinet and solid door are foamed-in-place with polyurethane insulation (zero ODP and GWP) for superior thermal retention.

• Heavy-Duty Frame: Welded steel frame rail with a black powder coating for long-lasting structural integrity.

• Mobility: Equipped with 4" (102 mm) stem castors—front set includes locks for stability.

Right-Hinged Door System

• Full-Width Stainless Steel Door: Built for heavy-duty commercial use, with a clear aluminum liner to match the interior.

• Integrated Lock: Door lock is standard for added security in shared or high-traffic environments.

• Recessed Door Handle: 12" (305 mm), lifetime-guaranteed, and permanently interlocked for commercial durability.

• Self-Closing & Sealed: Positive seal with torsion-type closure system and lifetime-guaranteed hinges.

• Tool-Free Magnetic Gasket: One-piece design allows for quick removal and easy cleaning.

Adjustable Shelving System

• Includes 3 Heavy-Duty Shelves: PVC-coated wire shelves measuring 22 7/8" L x 23 1/4" D (582 mm x 591 mm).

• Flexible Shelf Placement: Shelves can be adjusted in 1/2" (13 mm) increments using chrome-plated clips and integrated pilasters.

Interior Lighting

• Bright, shielded interior lighting enhances visibility and is controlled by a rocker switch above the door.

Additional Model Features

• Exterior Temperature Display: Allows at-a-glance monitoring of internal cabinet temperature.

• Epoxy-Coated Evaporator Coil: Corrosion-resistant design for long-lasting performance.

• Rear Airflow Guards: Prevent items from blocking airflow and ensure uniform cooling.

• NSF/ANSI Standard 7 Certified: Approved for open food storage in commercial kitchens.

Electrical Requirements

• Pre-wired for easy installation.

• Voltage: 115V / 60Hz / 1-Phase

• Amperage: 5.4

• Plug Type: NEMA 5-15P

• Cord Length: 9 ft (2.74 m)

• Requires a 15-amp dedicated outlet

Optional Accessories (May Require Additional Lead Time)

• 220–240V / 50Hz configuration

• 6" standard legs or seismic/flanged legs

• 2 1/2" castors

• Alternate door hinging (factory-installed)

• Novelty baskets

• Additional shelves

Highlighted Features of the True Solid Door Reach-In Freezer

• Built for Long-Term Commercial Use
  True’s solid door reach-in freezers are engineered with high-quality materials and commercial-grade construction that ensure long-lasting performance and protect your investment in high-volume kitchens.

• Energy-Efficient Freezing Performance
  Equipped with an oversized evaporator coil, high-horsepower compressor, and large condenser, this unit maintains consistent cabinet temperatures of -10°F (-23.3°C) — ideal for storing frozen foods, meats, and ice cream in demanding foodservice environments.

• Premium Stainless Steel Design
  The stainless steel door and front panels are made from high-tensile strength steel that resists dents, dings, and scratches — preserving its professional appearance over time.

• Heavy-Duty Adjustable Shelving
  Includes PVC-coated, corrosion-resistant wire shelves that can be repositioned to accommodate various product sizes, improving organization and airflow throughout the unit.

• Self-Closing, Positive Seal Door
  The solid door features a lifetime-guaranteed hinge system and torsion-type self-closing mechanism, ensuring a tight seal that conserves energy and keeps cold air in.

• Automatic Defrost System
  Time-initiated and temperature-terminated, the auto defrost cycle minimizes energy use and reduces downtime — keeping your freezer running efficiently in any commercial kitchen.

Bottom-Mounted Condensing Unit Advantages

• “No Stoop” Lower Shelf: Easier access to stored items without bending over.

• Top-of-Cabinet Storage: Flat top surface provides extra usable space in tight kitchens.

• Cool Zone Compressor Location: Positioned away from heat and grease zones for extended compressor life and improved performance.

• Easy Maintenance Access: The condenser coil is conveniently accessible for routine cleaning, which helps maintain energy efficiency and system reliability.

General

• Model: T-23F-HC

• Door Count: 1 solid right-hinged door

• Shelf Count: 3 adjustable heavy-duty PVC-coated wire shelves

• Crated Weight: 295 lbs (134 kg)

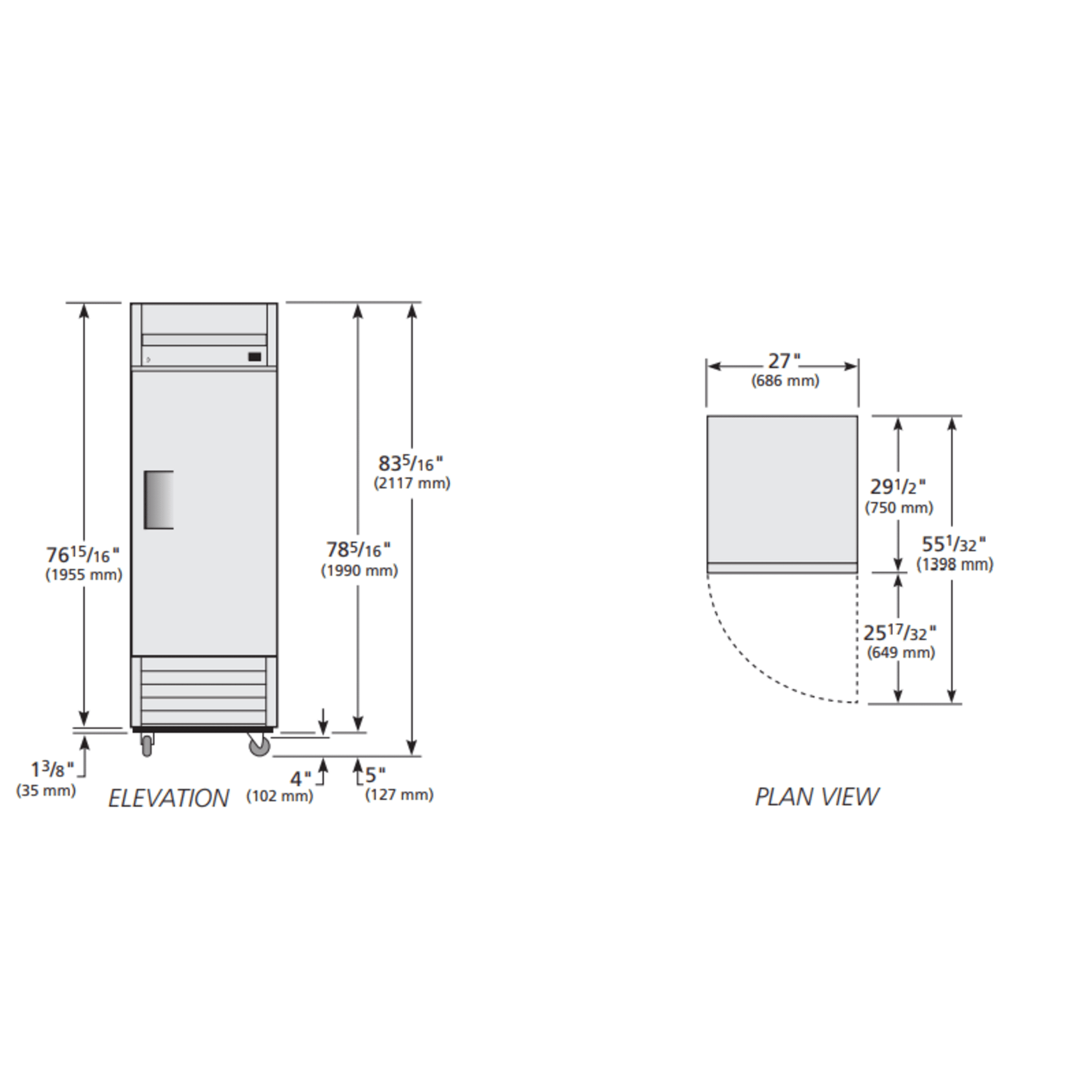

Dimensions

• Width: 27" (686 mm)

• Depth: 29 1/2" (750 mm)

• Height: 78 3/8" (1991 mm)

Refrigeration

• Horsepower: 1/2 HP

• Operating Temperature: Maintains -10°F (-23.3°C)

• Refrigerant: R290 Hydrocarbon (environmentally friendly)

Electrical

• Standard Voltage: 115V / 60Hz / 1 Phase

• Amperage: 3.7 A

• Plug Type: NEMA 5-15P

• Cord Length: 9 ft (2.74 m)

Optional Voltage Configuration

• Alternate Voltage: 220–240V / 50Hz

• Amperage: 2.2 A
