True T-49F-HC 54 1/8" T Series Two Door Reach In Freezer – 115V

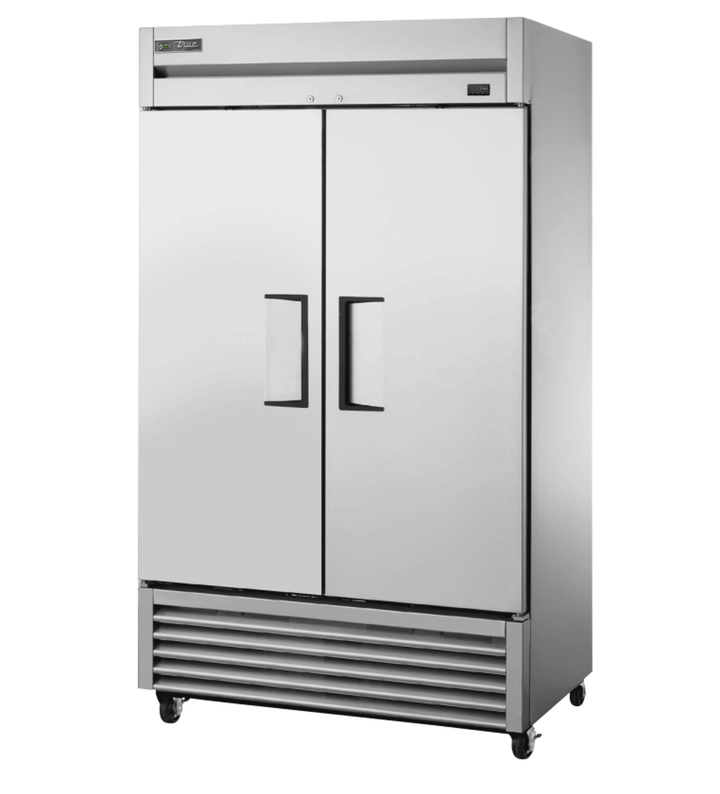

True T-49F-HC 54 1/8" Two-Section Reach-In Freezer – Solid Left/Right Hinged Doors, 115V

The True T-49F-HC is a high-performance two-section commercial reach-in freezer designed for restaurants, bakeries, cafeterias, and commercial kitchens that demand durability, energy efficiency, and reliable -10°F frozen storage. Built with dual solid doors, premium materials, and a bottom-mounted compressor, this 54 1/8" freezer is ideal for preserving frozen foods and ice cream in high-volume environments.

Advanced Commercial Refrigeration

• Eco-Friendly R290 Refrigerant: Factory-engineered, self-contained capillary tube system uses R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and 0.02 global warming potential (GWP).

• Consistent Low Temperatures: Oversized evaporator coil, high-capacity compressor, and large condenser maintain reliable cabinet temperatures of -10°F (-23.3°C) — ideal for frozen meats, produce, desserts, and ice cream.

• Electronically Commutated Motors (ECM): Evaporator and condenser fan motors operate efficiently, reduce heat output, and enhance airflow consistency.

• Bottom-Mounted Compressor Design: Located in the coolest and least greasy area of the kitchen for improved performance, longer life, and easier maintenance. Also allows for top-of-unit storage.

• Automatic Defrost: Time-initiated and temperature-terminated defrost cycle minimizes energy usage while maintaining performance.

Heavy-Duty Construction

• Exterior: Stainless steel front with anodized aluminum ends and corrosion-resistant GalFan-coated steel back.

• Interior: Clear-coated aluminum liner and stainless steel floor with coved corners for easy cleaning and sanitation.

• Insulation: Entire cabinet and solid doors are foamed-in-place with high-density polyurethane insulation (zero ODP / GWP) for maximum thermal efficiency.

• Reinforced Frame Rail: Welded steel, powder-coated black for corrosion protection.

• Mobility: Equipped with 4" (102 mm) diameter stem castors (front locking standard).

Dual Solid Stainless Steel Doors

• Full-Width Door Access: Stainless steel exterior with aluminum interior liner.

• Factory-Installed Door Locks: Standard for secure food storage.

• Recessed Handles: 12" (305 mm) handles are foamed-in-place and interlocked with the door for durability; lifetime guaranteed.

• Self-Closing Doors: Positive seal torsion-type closure system ensures efficient sealing with lifetime-guaranteed hinges.

• Tool-Free Magnetic Gaskets: Removable for easy cleaning.

Adjustable Shelving System

• Includes six (6) heavy-duty PVC-coated wire shelves

  • Dimensions: 24 9/16" L x 22 3/8" D (624 mm x 569 mm)

• Adjustable in 1/2" increments with chrome-plated clips

• Shelf pilasters match cabinet interior for a seamless look

LED Interior Lighting

• Safety-shielded LED lighting activated by a rocker switch above the doors for full cabinet illumination.

Model Features

• Exterior Digital Temperature Display: Provides quick, easy monitoring

• Epoxy-Coated Evaporator: Prevents corrosion and extends component life

• Rear Airflow Guards: Prevent stored items from blocking airflow, ensuring consistent internal temperatures

• NSF/ANSI Standard 7 Certified: Approved for open food storage in commercial foodservice operations

Electrical Specifications

• Voltage: 115V / 60Hz / 1 Phase

• Amps: 9.6 A

• Alternate Voltage Option: 230V / 50Hz (factory-configured)

• Plug Type: NEMA 5-15P

• Cord Length: 9 ft (2.74 m)

• Fully pre-wired and ready for installation

Optional Accessories (Lead Time & Upcharge May Apply)

• 230V / 50Hz electrical configuration

• 6" (153 mm) standard legs or seismic/flanged legs

• 2 1/2" castors or standard legs

• Additional wire shelves

• Novelty baskets

• Half-Door Bun Tray Racks: Hold up to (11) 18" x 26" sheet pans (458 mm x 661 mm); airflow guards must be removed

• Full-Door Bun Tray Racks: Hold up to (22) 18" x 26" sheet pans; airflow guards must be removed

• Alternate Door Hinges: Factory-installed option

Highlighted Features – True Solid Door Reach-In Freezers

Built for Commercial Durability & Performance

• True’s solid door reach-in freezers are built with lasting quality to protect your long-term investment in high-volume foodservice operations.

• Crafted using the highest-grade stainless steel and precision components to deliver superior temperature control, efficiency, and food safety.

• Designed to maintain colder product temperatures, reduce utility costs, and provide unmatched reliability for restaurants, kitchens, and commercial storage applications.

High-Performance, Eco-Friendly Refrigeration

• Equipped with a self-contained capillary tube refrigeration system, factory-engineered for maximum efficiency.

• Uses R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and a low 0.02 global warming potential (GWP)—compliant with environmental standards.

• Factory-balanced refrigeration system maintains cabinet temperatures at a consistent -10°F (-23.3°C), ideal for frozen foods and ice cream storage.

• Electronically commutated fan motors (ECM) deliver greater airflow efficiency, reduced heat, and lower energy consumption.

• Automatic defrost system is time-initiated and temperature-terminated, minimizing downtime while maximizing energy savings.

Premium Cabinet Construction

• Solid stainless steel front and doors made with high-tensile material to resist dents, scratches, and wear in busy kitchens.

• Adjustable heavy-duty PVC-coated wire shelves offer flexibility and long-lasting support for various frozen products.

• Positive seal self-closing doors keep cold air inside, reducing temperature fluctuations and preserving product quality.

• Lifetime-guaranteed door hinges and torsion-type closure system ensure smooth operation and longevity.

Bottom-Mounted Compressor Advantages

• “No stoop” lower shelf makes product access easier—ideal for fast-paced kitchens.

• Top-of-cabinet surface provides convenient storage space.

• Bottom-mounted compressor operates in the coolest, least greasy area of the kitchen—improving performance and extending compressor life.

• Easy-access condenser coil simplifies cleaning and maintenance, helping maintain peak energy efficiency.

• Model: T-49F-HC

• Doors: 2 Solid Stainless Steel Doors (Left & Right Hinged)

• Shelves: 6 Adjustable Heavy-Duty PVC-Coated Wire Shelves

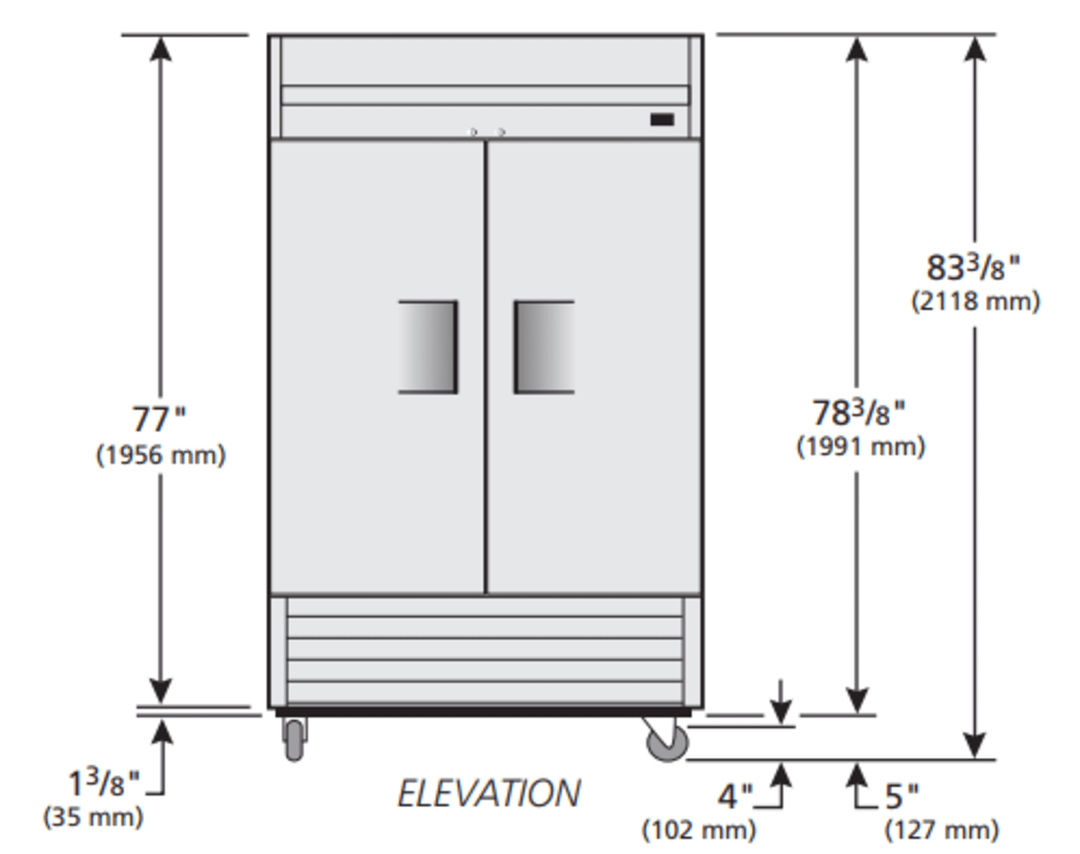

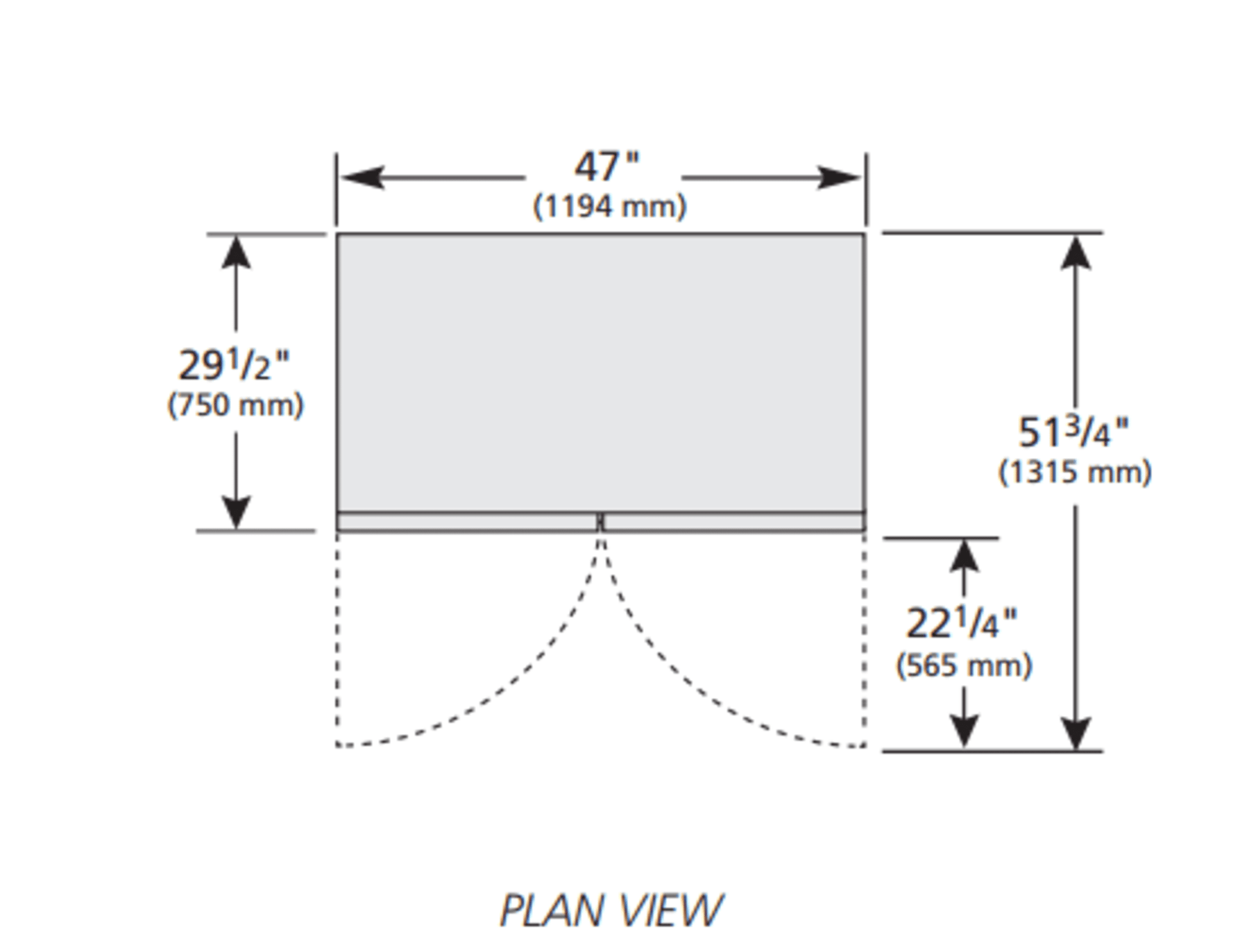

• Exterior Dimensions: 54 1/8" W x 29 1/2" D x 78 3/8" H

• Metric Dimensions: 1375 mm x 750 mm x 1991 mm

• Temperature Range: Maintains -10°F (-23.3°C)

• Horsepower: 1 HP

• Refrigerant: R290 Hydrocarbon (Environmentally Friendly)

• Defrost Type: Automatic, Time-Initiated / Temperature-Terminated

• Evaporator: Epoxy-Coated for Corrosion Resistance

• Fan Motors: Electronically Commutated Motors (ECM)

• Compressor Location: Bottom-Mounted

• Interior: Clear-Coated Aluminum with Stainless Steel Floor

• Insulation: Foamed-In-Place High-Density Polyurethane (Zero ODP / GWP)

• Mobility: 4" Stem Castors with Front Locks

• Lighting: Safety-Shielded LED, Rocker Switch Activated

• Temperature Display: Exterior Digital Display

• Certifications: NSF/ANSI Standard 7 Compliant

• Voltage: 115V / 60Hz / 1 Phase

• Amps: 9.6 A

• Plug Type: NEMA 5-15P

• Cord Length: 9 ft (2.74 m)

• Crated Weight: Approx. 455 lbs (206 kg)

• Optional Features:

• 230V / 50Hz Configuration

• 6" Legs (Standard or Seismic/Flanged)

• 2 1/2" Castors

• Additional Shelves or Novelty Baskets

• Half or Full Door Bun Tray Racks (sheet pans sold separately)

• Alternate Door Hinging (Factory-Installed)
