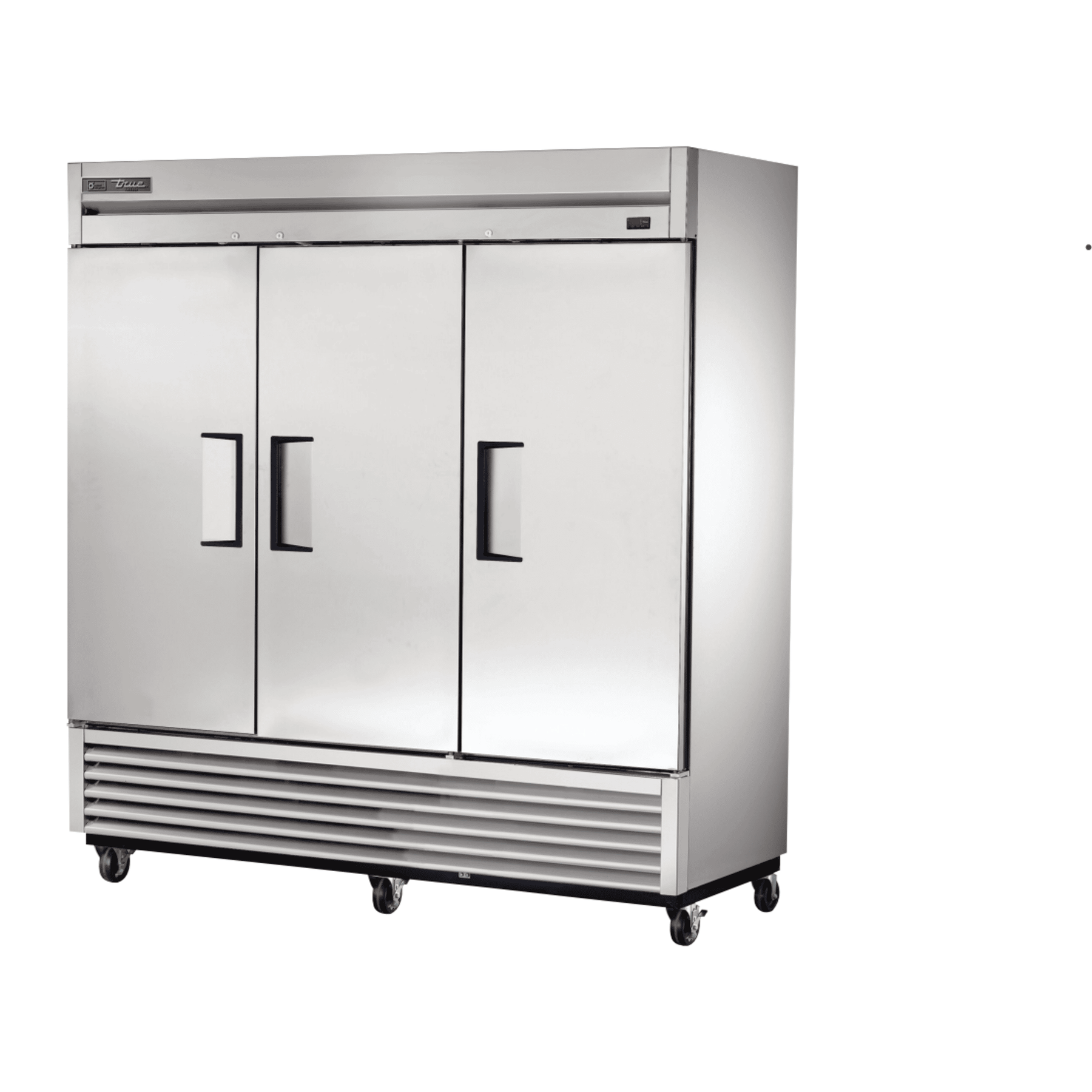

True T-72F-HC 78 1/8" T Series Three Door Reach In Freezer – 115V

True T-72F-HC 78 1/8" Three-Section Reach-In Freezer – 3 Solid Left/Right Hinged Doors, 115V

The True T-72F-HC is a high-capacity three-section commercial freezer engineered for maximum durability, energy efficiency, and food safety in busy commercial kitchens. With three solid doors, dual compressors, and oversized refrigeration components, this 78 1/8-inch wide reach-in freezer delivers powerful -10°F performance, ideal for storing frozen meats, produce, prepared foods, and ice cream in high-volume environments.

Commercial-Grade Refrigeration System

• Eco-Friendly Cooling: Self-contained capillary tube system uses R290 hydrocarbon refrigerant with zero ozone depletion potential (ODP) and a 0.02 global warming potential (GWP).

• Consistent Freezing: Dual compressors (each 3/4 HP) and an oversized evaporator/condenser combination maintain steady -10°F (-23.3°C) temperatures.

• Energy-Efficient Motors: ECM (electronically commutated motors) deliver superior airflow and energy savings while reducing heat generation.

• Bottom-Mounted Compressor Design: Operates in the coolest, most grease-free area of the kitchen and allows for additional top-mounted storage.

• Automatic Defrost: Time-initiated and temperature-terminated cycles ensure optimal performance and reduced energy use.

Durable Cabinet Construction

• Exterior: Stainless steel front with anodized aluminum ends and GalFan-coated steel back for corrosion resistance.

• Interior: Clear-coated aluminum liner and stainless steel floor with coved corners for easy cleaning and sanitation.

• Insulation: Foamed-in-place high-density polyurethane insulation (zero ODP / zero GWP) for maximum temperature retention.

• Frame Rail: Welded heavy-duty steel, powder coated for long-lasting structural support and rust protection.

• Mobility: 4" (102 mm) diameter stem castors with locking front wheels.

Three Solid Stainless Steel Doors

• Full-width doors with stainless steel exteriors and aluminum interior liners.

• Standard door locks for secure food storage.

• 12" recessed handles, foamed-in-place with sheet metal interlock — lifetime guaranteed.

• Positive seal, self-closing mechanism with torsion-type closure and lifetime-guaranteed hinges.

• One-piece magnetic gaskets are tool-free removable for easy cleaning.

Adjustable Shelving System

• Includes nine (9) heavy-duty PVC-coated wire shelves, each measuring 24 1/8" L x 22 3/8" D (613 mm x 569 mm).

• Shelves adjust in 1/2" increments using chrome-plated shelf clips and integrated pilasters.

Interior Lighting

• Bright, safety-shielded LED lighting controlled by a rocker switch above the doors for maximum cabinet visibility.

Model Features

• Exterior digital temperature display for quick, accurate temperature monitoring.

• Epoxy-coated evaporator to prevent corrosion and extend equipment life.

• Rear airflow guards ensure products do not block optimal airflow.

• NSF/ANSI Standard 7 certified — safe for storing open food products in commercial kitchens.

Electrical Specifications

• Voltage: 115V / 60Hz / 1 Phase

• Amps: 20 A

• Plug Type: NEMA 5-20R

• Compressor System: Dual 3/4 HP compressors

• Cord Length: 9 ft (2.74 m)

• Pre-wired and ready for connection to a 20-amp dedicated outlet

Optional Accessories (Upcharge & Lead Times May Apply)

• 230V / 50Hz power configuration

• 6" standard or seismic/flanged legs

• 2 1/2" castors or alternate leg styles

• Additional shelves or novelty baskets

• Half Door Bun Tray Racks: Fit up to (11) 18" x 26" sheet pans (airflow guards must be removed)

• Full Door Bun Tray Racks: Fit up to (22) 18" x 26" sheet pans (airflow guards must be removed)

• Alternate factory-installed door hinging

Highlighted Features – True Solid Door Reach-In Freezers

Engineered for Long-Term Commercial Performance

• True’s solid door reach-in freezers are built with lasting durability, making them an ideal long-term investment for busy commercial kitchens, restaurants, and foodservice operations.

• Constructed using premium stainless steel and commercial-grade components for outstanding performance, reliability, and clean aesthetics.

High-Efficiency Refrigeration System

• Factory-engineered, self-contained capillary tube refrigeration system ensures fast and efficient cooling.

• Uses R290 hydrocarbon refrigerant — an environmentally friendly choice with zero ozone depletion potential (ODP) and low global warming potential (0.02 GWP).

• Features a high-capacity, factory-balanced refrigeration system that maintains consistent -10°F (-23.3°C) cabinet temperatures — perfect for preserving frozen foods, meats, and ice cream.

• Electronically commutated fan motors (ECM) improve airflow efficiency, reduce heat output, and lower energy consumption.

• Automatic defrost system is time-initiated and temperature-terminated for reduced energy usage and minimal downtime.

Premium Cabinet Construction

• Solid stainless steel doors and front panels made from high-tensile steel resist dents, scratches, and everyday kitchen wear.

• Heavy-duty, adjustable PVC-coated wire shelves provide versatile and durable cold storage organization.

• Self-closing door design with a positive seal system retains cold air to preserve food quality and reduce compressor workload.

• Lifetime-guaranteed hinges and torsion-type closure system ensure smooth door operation and long-term reliability.

Bottom-Mounted Compressor Advantages

• “No stoop” lower shelf design improves accessibility to lower products without bending.

• Top-of-unit storage offers extra space for non-refrigerated items or lightweight containers.

• Compressor location in the coolest, most grease-free area of the kitchen enhances system performance and prolongs life.

• Easily accessible condenser coil allows for simple routine cleaning and helps maintain energy efficiency over time.

• Model: T-72F-HC

• Door Count: 3 solid stainless steel doors (left/right hinged)

• Shelves: 9 heavy-duty PVC-coated wire shelves

• Shelf Dimensions: 24 1/8" L x 22 3/8" D (613 mm x 569 mm)

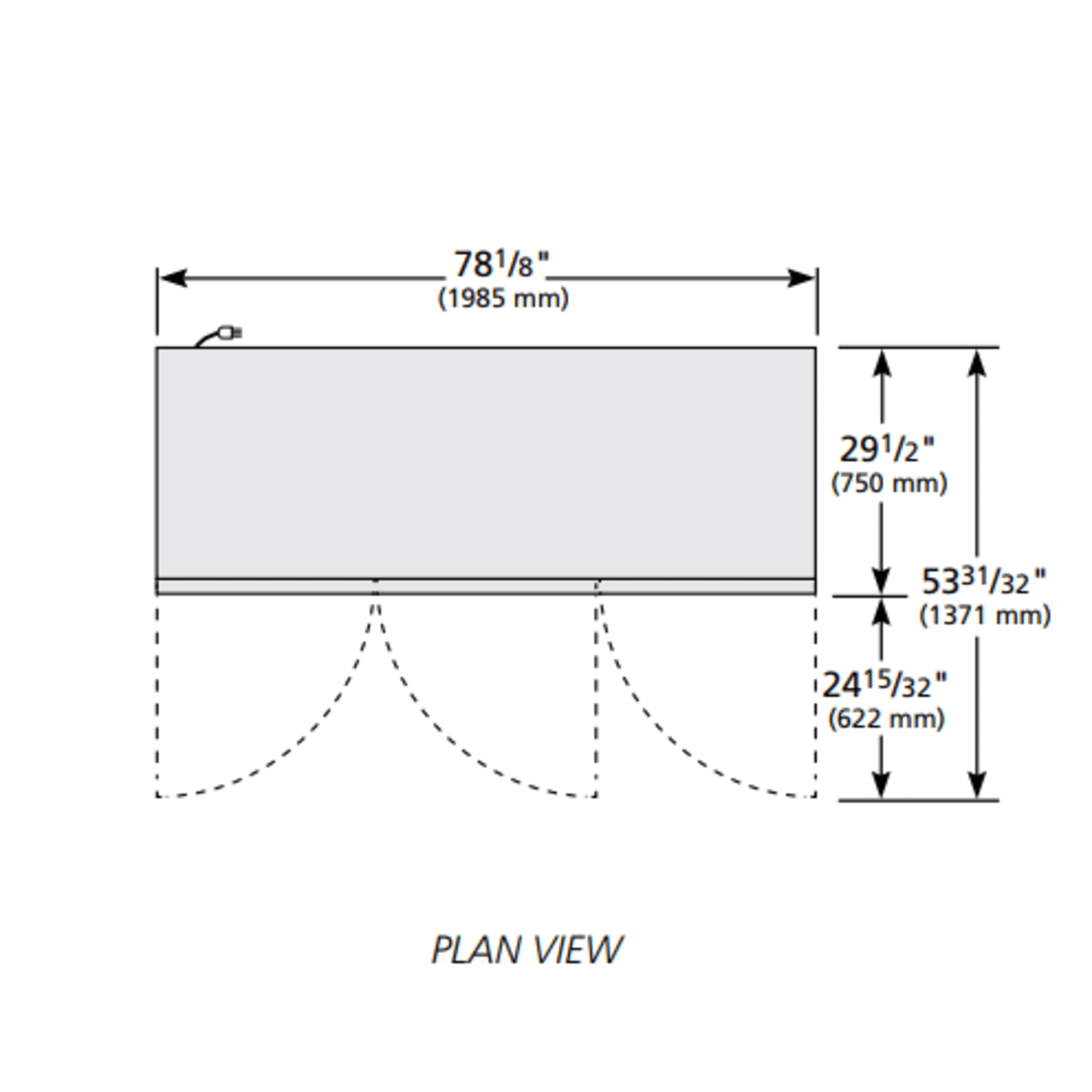

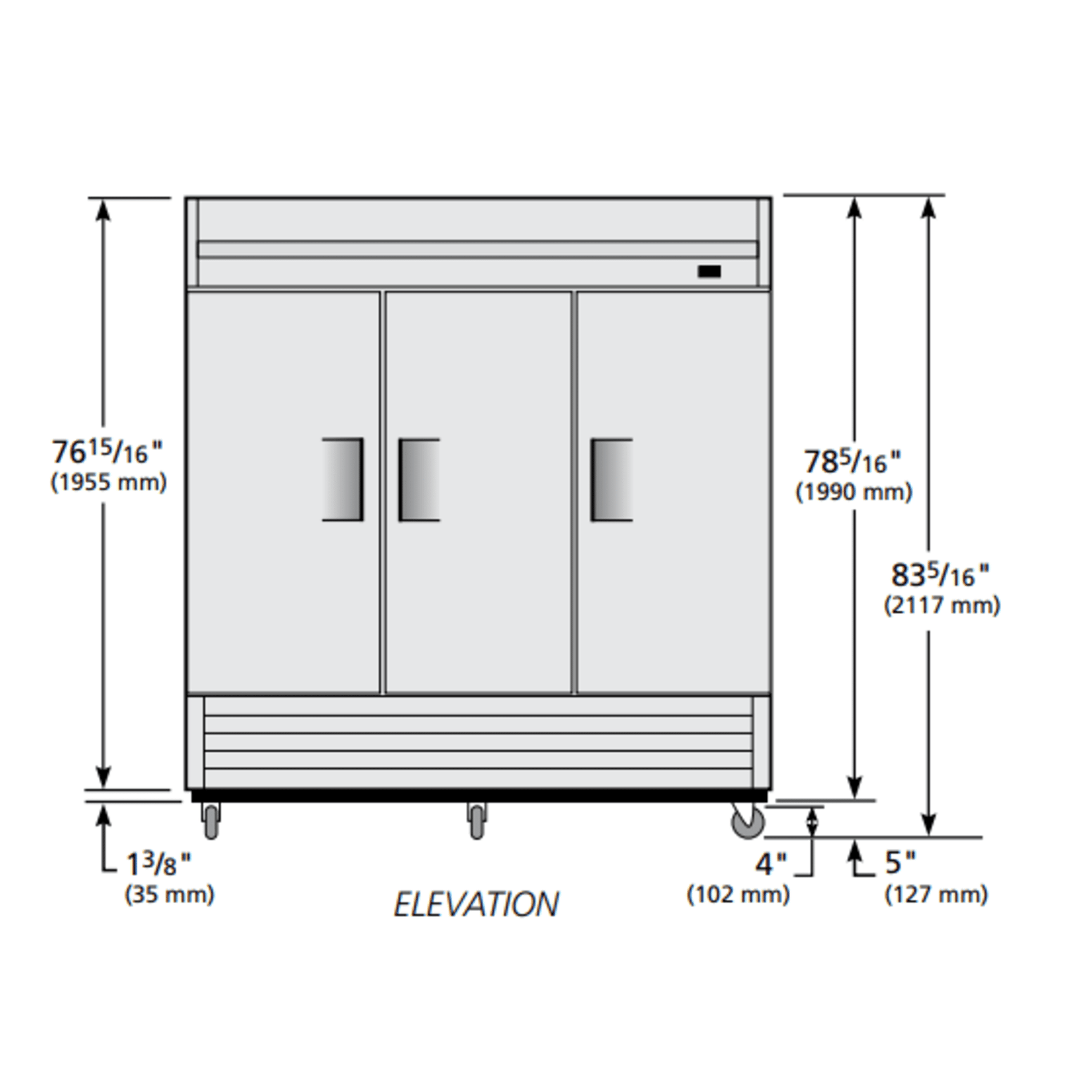

• Cabinet Dimensions: 78 1/8" W x 29 1/2" D x 78 3/8" H

• Metric Dimensions: 1984 mm W x 750 mm D x 1991 mm H

• Temperature Range: Maintains -10°F (-23.3°C)

• Refrigerant: R290 Hydrocarbon (Low GWP, Zero ODP)

• Compressor System: Dual compressors (3/4 HP each)

• Evaporator: Epoxy-coated, corrosion-resistant

• Defrost System: Time-initiated, temperature-terminated

• Fan Motors: ECM (electronically commutated motors)

• Lighting: LED interior, safety shielded

• Insulation: Foamed-in-place polyurethane (Zero ODP/GWP)

• Mobility: 4" stem castors with front locks

• Plug Type: NEMA 5-20R

• Electrical Requirements: 115V / 60Hz / 1 Phase

• Amps: 20 A

• Cord Length: 9 ft (2.74 m)

• Crated Weight: Approx. 575 lbs (261 kg)

• Certifications: NSF/ANSI Standard 7 compliant
